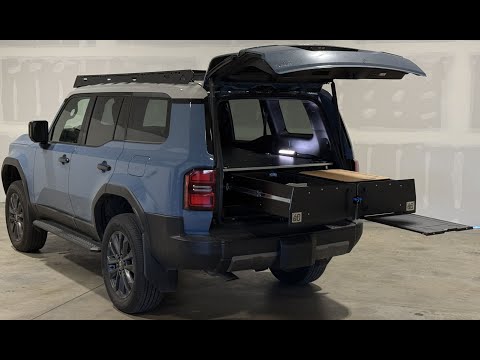

SS1 System- 250 Series Land Cruiser
Proudly designed, machined, assembled and supported 100% in the USA, these storage and sleeping platform systems offer a modular approach to vehicle organization. Choose from a basic platform all the way up to a system with Richlite surface, dual drawers and a sleeper - or even a fridge! These kits ship with some basic assembly required. Freight is available if you desire the most plug and play option possible.
- "No Snag" Recessed hardware throughout the platform surface
- Aluminum legs anodized black
- Stainless steel hardware throughout
- Solid 6061 aluminum anchor bars hold the system directly to the vehicle's body
- 4 tie down points for cargo on top
- Carbon fiber 3D printed "No Snag" tie down ramps
- Aluminum rear trim piece - functional and aesthetic
Convertible Sleeper: This option adds the sleeper panels that slide out on demand to give you a large and luxurious sleeper area. Be the envy of everyone else at camp all while keeping your 2nd row seats fully functional!
- Convertible on the fly, sliding sleeper panels which take only seconds to deploy
- Hardware is recessed into the panels
Drawers:
Full Extension. Lock In, Lock Out. Ball Bearing. These drawers can be added onto the SS1 systems on initial purchase or as an add on later.
Drawers are all pre-drilled for our optional slide out table. Drawers include divider slots and 3 dividers made from HDPE for the interior space of the drawer.
Basic Dims:
Drawers: Internal storage size: 15.3" width, 36" length, 8" vertical clearance. Roughly 70 liters (~74 quarts) per drawer.
System height: Two variants are planned. Current variant is 11" tall. Additional low-pro version can be made, but will not allow the CD30 drawer fridge. Contact us if you're interested in the low version. info@airdowngearup.com
System width and length consume the cargo space with minimal clearance all around.
